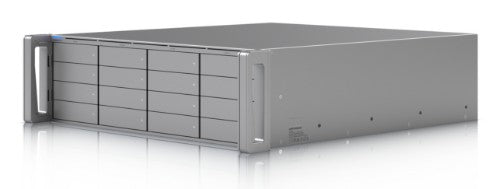

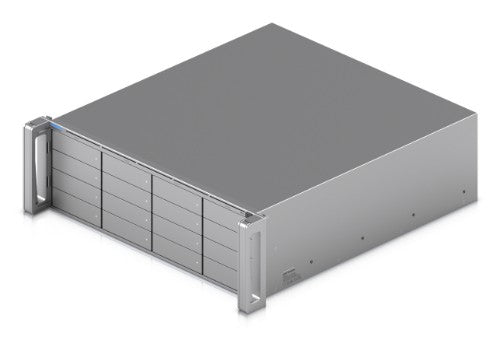

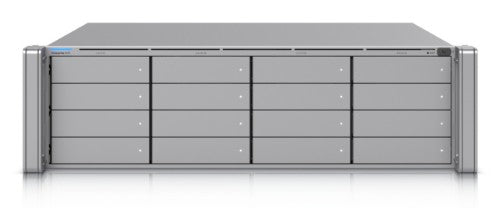

Ubiquiti Enterprise Network Video Recorder 3U Grey

(16) 2.5/3.5" HDD / SSD support, (2) 10G SFP+, (1) 10 GbE, 481.4 x 480 x 132 mm

Description

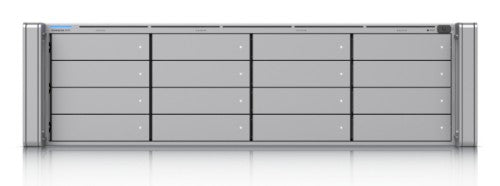

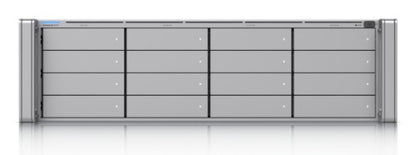

3U NVR with (16) 2.5/3.5” drive bays, supporting up to (70) 4K cameras or (210) Full HD cameras.

Specifications

Performance
Built-in processor	Yes
Internal memory	32000 MB
Ethernet LAN data rates	10000 Mbit/s
Video recording modes	1080p, 2160p, 4320p
Wireless LAN features
Wi-Fi	No
Hard drive
Number of HDDs supported	16
HDD size	2.5/3.5"
Number of HDDs installed	0
HDD capacity	0 GB
Storage
Number of HDDs supported	16
HDD size	2.5/3.5"
Number of HDDs installed	0
HDD capacity	0 GB
Solid state drive
Number of SSDs installed	0
SSD capacity	0 GB

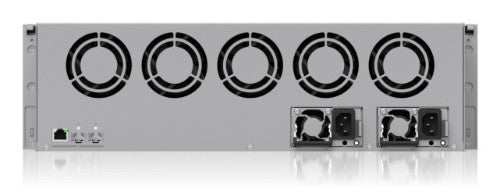

Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10000 Mbit/s
Fiber ports quantity	2
Features

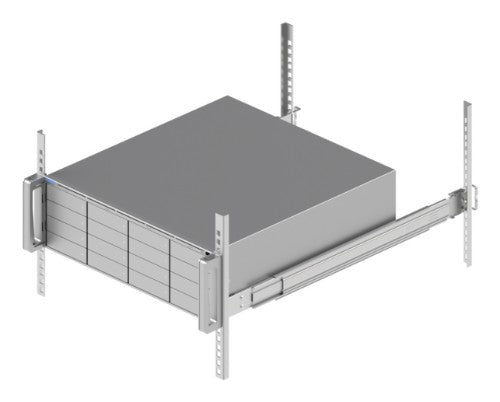

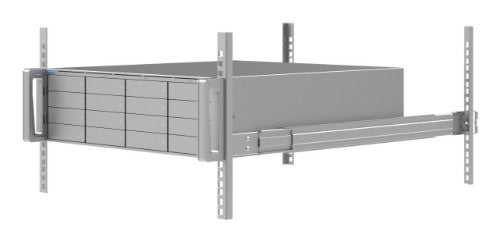

Rack mounting	Yes
LED indicators	Yes
Rack capacity	3U
Product colour	Grey
Processor
Built-in processor	Yes
Power
AC input voltage	100-240 V
AC input frequency	50/60 Hz
Power consumption (max)	410 W
Power supply	550 W
Operational conditions
Operating temperature (T-T)	-50 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	481.4 mm
Depth	480 mm
Height	132 mm
Weight	16.6 kg
