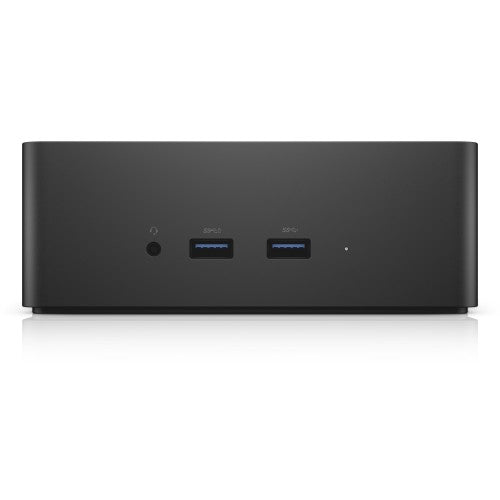

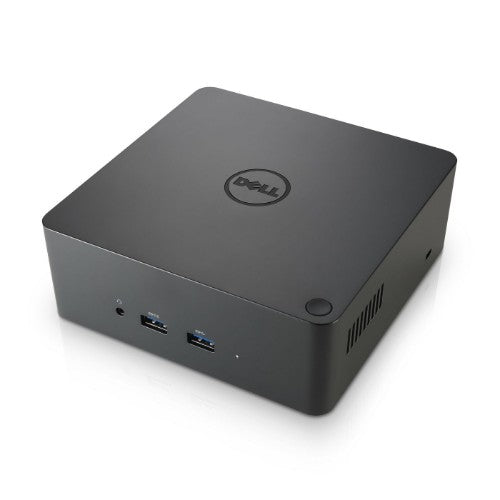

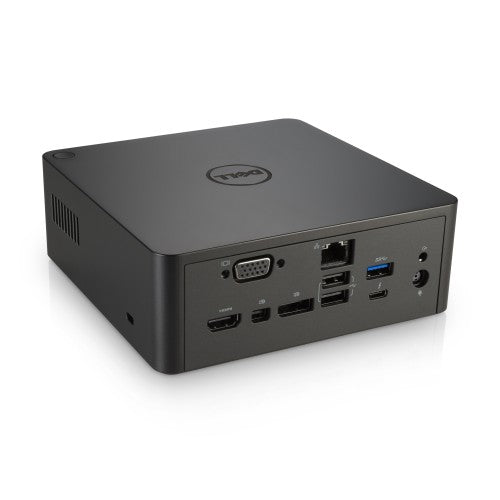

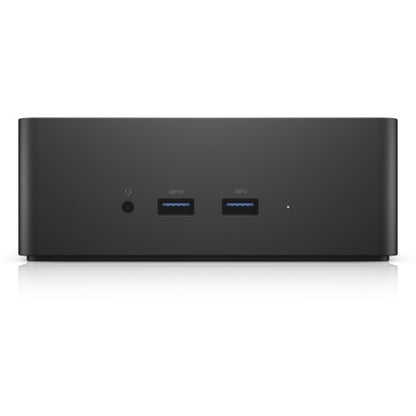

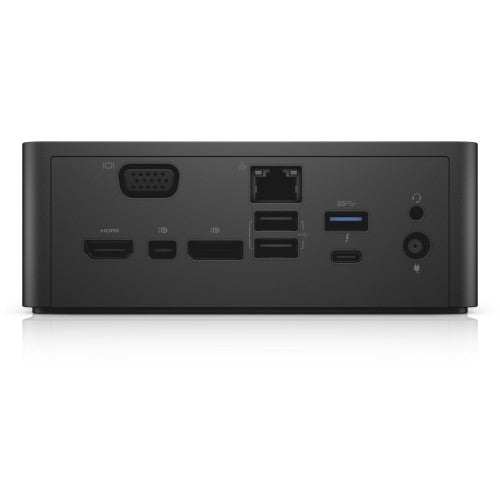

DELL TB16 Wired Thunderbolt 3 Black

180W, 2 x USB 2.0, 3 x USB 3.0, 1 x Thunderbolt 3 (USB-C), 1 x LAN

Description

The Dell Thunderbolt™ Dock TB16 -180W allows you to quickly connect your mobile workstation to a single data and power source for ultimate display performance and speedy data transfers. The dock connects to Thunderbolt™ 3 enabled notebooks* with a single USB Type-C Thunderbolt™ Cable, allowing users to quickly connect to multiple displays and peripherals, providing power to the notebook, and freeing up space on your desk and in your workspace. * While Dell has committed to ensuring the TB16 meets open standards, 3rd party OEMs can limit compatibility

One dock. One cable. Ultimate Performance.

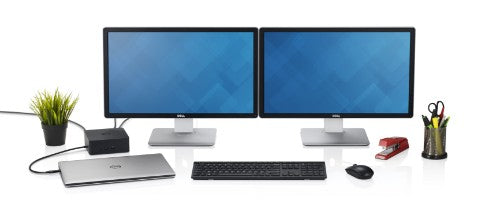

The Dell Thunderbolt™ Dock TB16 -180W with Intel® Thunderbolt 3 technology is the ultimate docking solution, designed for power users and traditional workstation clients, creating the ability to connect up to three FHD displays, two 4K displays, or one 5K display at 60Hz. Data transfers up to 40 Gbps allow lightning-fast transfers of larger files such as video editing files.

Small footprint and big flexibility

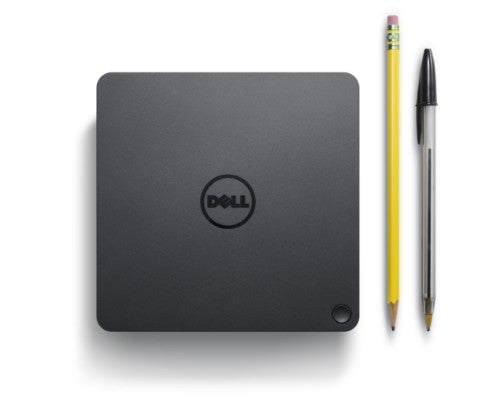

The Dell Thunderbolt™ Dock TB16 -180W is small in size—just 5.7 x 5.7 x 2 inches (145 x 145 x 51mm). By connecting one cable to your laptop, you can get access to a wide variety of ports, enhancing productivity.

One source for power

The Dell Thunderbolt™ Dock TB16 -180W can provide power to your laptop (at 19.5V) and can also provide power to attached Thunderbolt™ 3 peripherals. With the ability to provide up to 60W of power to an external Thunderbolt™ 3 device, this version is best for Dell Latitude and XPS notebooks and 2-in-1s with a Thunderbolt™ 3 port that require up to 65W of power.

Specifications

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Thunderbolt 3 ports quantity	1
Headphone connectivity	3.5 mm
Host interface	Thunderbolt 3
USB 2.0 ports quantity	2
USB connector type	USB Type-A, USB Type-C
Line-out	Yes
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	1.4a
VGA (D-Sub) ports quantity	1
DisplayPorts quantity	1
Mini DisplayPorts quantity	1
Microphone in	No
Headphone outputs	0
DC-in jack	Yes
Connectivity technology	Wired
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
Product colour	Black
Card reader integrated	No
Brand compatibility	Dell
Cable lock slot	Yes
LED indicators	Yes
Cable lock slot type	Kensington
Technical details
Product colour	Black
Brand compatibility	Dell
Cable lock slot	Yes
Storage
Card reader integrated	No
Power
Power source type	AC
Power supply	180 W
Software
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1
Linux operating systems supported	Ubuntu 14.04
Indication
LED indicators	Yes
Operational conditions
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Weight	720 g
Width	145 mm
Depth	145 mm
Height	52 mm
Design
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1
Product colour	Black
Cable lock slot	Yes
LED indicators	Yes
Cable lock slot type	Kensington
Packaging content
Manual	Yes
Cables included	Thunderbolt
AC adapter included	Yes
