Kensington SD5920T EQ Thunderbolt 4 Quad 4K Hybrid Dock with DisplayLink Technology

SD5920T EQ Thunderbolt 4 Quad 4K Hybrid Dock with DisplayLink Technology

Key Features

• Supports up to Quad 4K @ 60Hz for Thunderbolt™ 4 laptops and devices via plug-and-play TB4 port and MacBook* models with M1/M2/M3 Pro and Max chipsets via DisplayLink®. * For MacBook M1/M2/M3/M4 with Pro and Max chipsets (and M3 base chipset when laptop lid is closed), this dock supports up to quad 4K @ 60Hz. It also supports up to triple 4K @ 60Hz for M1/M2 base chipsets.
• Optimised for Thunderbolt™ 4, Thunderbolt™ 3, USB4® and USB-C® devices running Windows (10 or later), macOS (11 or later) and ChromeOS (116 or later).
• Composed of 100% post-consumer recycled (PCR) aluminium* and delivered in FSC® certified packaging. * The outer casing of the docking station is made of aluminium. The PCBA and any related inner components are not made of aluminium.
• Combines Thunderbolt™ with DisplayLink® to provide next-level productivity experiences, including up to 40Gbps of data, video and audio, daisy chain support, together with Intel VT-d DMA protection.
• Up to 100W Charging (96W certified) to power your laptop and connected accessories.
• Productive 16-in-1 design allows users to work more efficiently and connect to a variety of setups.
• Zero-footprint mounting option support a tidier workspace.
• Security cable lock slots support device protection.
• 3-Year limited warranty.

Reasons To Buy

Quad 4K Video Output

Supports up to Quad 4K @ 60Hz for Thunderbolt™ 4 laptops and devices via plug-and-play TB4 port and MacBook* models with M1/M2/M3 Pro and Max chipsets via DisplayLink®. Provides flexible video connections (HDMI®, DP and TB4) without the need for cumbersome adapters. * For MacBook M1/M2/M3/M4 with Pro and Max chipsets (and M3 base chipset when laptop lid is closed), this dock supports up to quad 4K @ 60Hz. It also supports up to triple 4K @ 60Hz for M1/M2 base chipsets.

Universal Compatibility

A quick and powerful solution for Thunderbolt™ 4, Thunderbolt™ 3, USB4® and USB-C® devices running Windows (10 or later), macOS (11 or later) and ChromeOS (116 or later).

Recycled Materials

The SD5920T is composed of 100% post-consumer recycled (PCR) aluminium* and is delivered in Forest Stewardship Council (FSC®) certified packaging. * The outer casing of the docking station is made of aluminium. The PCBA and any related inner components are not made of aluminium.

Thunderbolt™ 4 Hybrid Technology

Transfers up to 40Gbps of data, video , and audio. Provides daisy chain support for SSDs, monitors , and other Thunderbolt™ devices. Blocks peripheral devices from unauthorised access to system memory using Intel VT-d DMA protection.

Up to 100W Charging (96W certified)

Charges any Thunderbolt™ 4, Thunderbolt™ 3, USB4® or USB-C® laptop, while also providing power to any connected USB-C® or USB4® accessories, including phones, tablets and watches. Includes KonstantCharge™, enabling connected devices to charge even when your host device is undocked.

Productive 16-in-1 Design

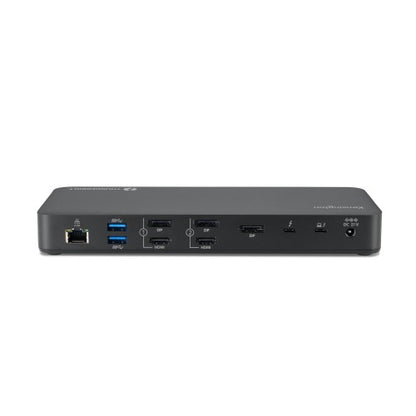

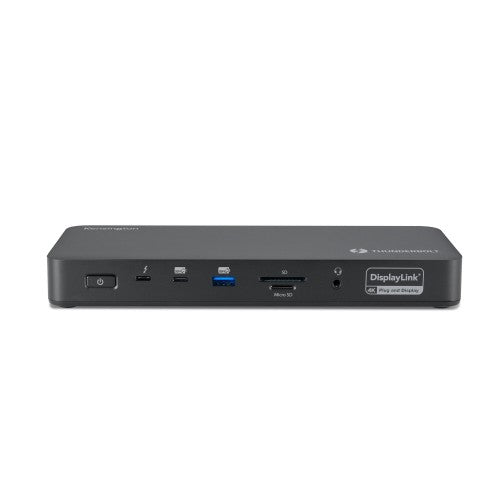

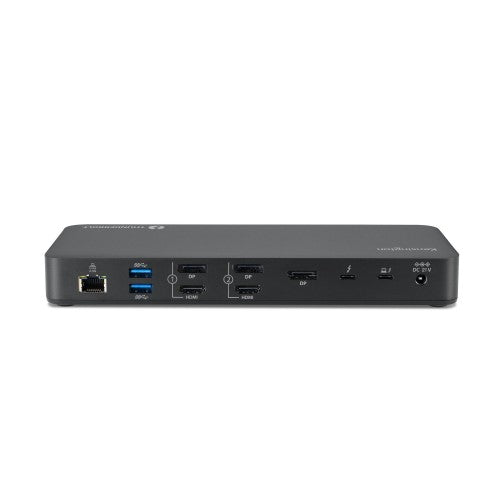

16 ports deliver expanded connectivity options. Includes 1 x Thunderbolt™ host port and 2 x Thunderbolt™ 4 downstream ports capable of data, video and audio, 1 x USB-C® 3.2 Gen2 10Gbps, 1 x USB-A 3.2 Gen2 10Gbps, 2 x USB-A 3.2 Gen1 5Gbps, 2 x HDMI®/DP, 1 x DP, 1 x 3.5mm combo audio jack, 1 x SD Card reader, 1 x Micro SD Card reader and 1 x 2.5Gbps Ethernet.

Security Cable Lock Slots

Protect your investment with a Kensington cable lock (K65020EU or K65021WW), sold separately.

3-Year Limited Warranty

Enjoy peace of mind knowing you are covered by Kensington with a professional warranty.

Description

Supporting up to four external displays on laptops running Windows, macOS and ChromeOS, the SD5920T EQ Thunderbolt™ 4 Quad 4K Hybrid Dock with DisplayLink® Technology is a versatile docking station for unlocking the full potential of Thunderbolt™ 4, Thunderbolt™ 3, USB4® and USB-C® devices. Flexible video connections include 2 x HDMI®/DP ports, 1 x DP port and 1 x Thunderbolt™ 4 port, supporting up to Quad 4K @ 60Hz. Focused on productivity, the SD5920T supports up to 100W Charging (96W certified) to the laptop, 40Gbps data transfer speeds and includes 16 connectivity ports. Partially made with recycled materials. Includes security cable lock slots and 3-year limited warranty. * For MacBook M1/M2/M3/M4 with Pro and Max chipsets (and M3 base chipset when laptop lid is closed), this dock supports up to quad 4K @ 60Hz. It also supports up to triple 4K @ 60Hz for M1/M2 base chipsets.

Specifications

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Headphone connectivity	3.5 mm
Host interface	Thunderbolt 4
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	2
DisplayPorts quantity	3
Headphone outputs	1
DC-in jack	Yes
Connectivity technology	Wired
USB Power Delivery (USB PD)	Yes
USB Power Delivery revision	3.0
USB Power Delivery up to	96 W
Thunderbolt 4 ports quantity	2
Network
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000,2500 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
Maximum digital resolution	7680 x 4320 pixels
Number of displays supported	4
On/off switch	Yes
Country of origin	Vietnam
Product colour	Black
Card reader integrated	Yes
Cable lock slot	Yes
Plug and Play	Yes
LED indicators	Yes
Data transfer rate	40 Gbit/s
Compatible memory cards	SD, MicroSD (TransFlash)
Cable lock slot type	Nano, Kensington
HD type	8K Ultra HD
Housing material	Aluminium, Plastic
Technical details
Product colour	Black
Cable lock slot	Yes
Plug and Play	Yes
Data transfer rate	40 Gbit/s
Compliance certificates	CB, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA
Special features	EQ
Master (outer) case width	360 mm
Master (outer) case gross weight	9.63 kg
Master (outer) case length	495 mm
Master (outer) case height	135 mm
Products per shipping (inner) case	6 pc(s)
Storage
Card reader integrated	Yes
Compatible memory cards	SD, MicroSD (TransFlash)
Power
Power source type	DC
Input current	2.5 A
AC input voltage	100 - 240 V
Output voltage	21 V
Output current	7.1 A
Software
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Other operating systems supported	ChromeOS
Indication
LED indicators	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-18 - 60 °C
Operating relative humidity (H-H)	0 - 55%
Weight & dimensions
Weight	600 g
Width	2250 mm
Depth	85 mm
Height	22 mm
Package weight	1.5 kg
Package width	245 mm
Package depth	107 mm
Package height	94 mm
Design
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Country of origin	Vietnam
Product colour	Black
Cable lock slot	Yes
LED indicators	Yes
Cable lock slot type	Nano, Kensington
Packaging data
Quantity per pack	1 pc(s)
Package weight	1.5 kg
Package width	245 mm
Package depth	107 mm
Package height	94 mm
Packaging content
Quick start guide	Yes

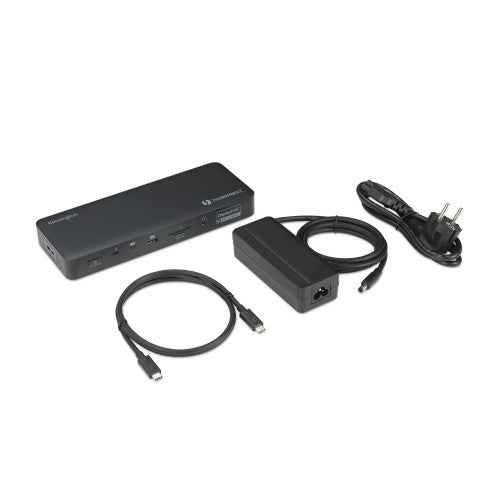

Cables included	AC, Thunderbolt
AC adapter included	Yes
Quantity per pack	1 pc(s)
Logistics data
Master (outer) case width	360 mm
Master (outer) case gross weight	9.63 kg
Master (outer) case length	495 mm
Master (outer) case height	135 mm
Products per shipping (inner) case	6 pc(s)
Other features
USB ports quantity	4
Compatible operating systems	Chrome OS 116 or above; Windows 10 or above; macOS 11 or above
Special features	EQ
