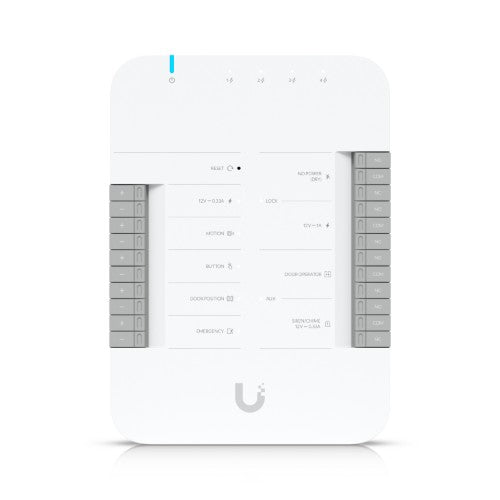

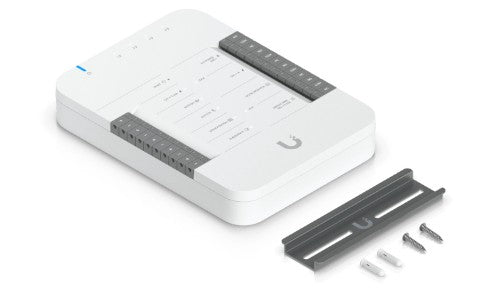

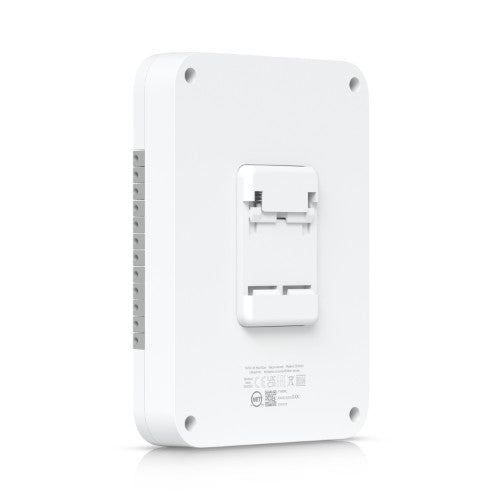

Ubiquiti Access Door Hub security door controller 1 door(s) Ethernet

Single door, 5x 10/100/1000 Base-T, PoE++, 174.9 x 126 x 32.9 mm

Key Features

• (2) Lock terminals (12V and Dry)
• (2) AUX terminals for an external siren and automatic door opener
• (4) Additional inputs (sensors and buttons)
• Connect and power using PoE++
• Connect to two UniFi Access readers and two UniFi Protect camera or UniFi Protect Chime

Description

A single-door mechanism that provides complete entry and exit control via connected Access Readers.

Specifications

Technical details
Maximum number of doors	1 door(s)
Interface	Ethernet
Exit request	Yes
LED indicators	Yes
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC), UL
Performance
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Power
Power consumption (typical)	30 W
DC voltage range	12 - 50 V
Ports & interfaces

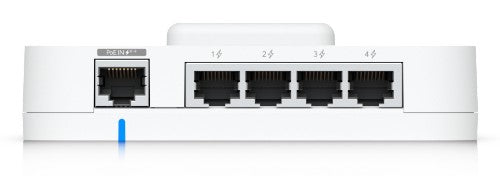

Ethernet LAN (RJ-45) ports	5
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	174.9 mm
Weight	363 g
Height	32.9 mm
Depth	126 mm
