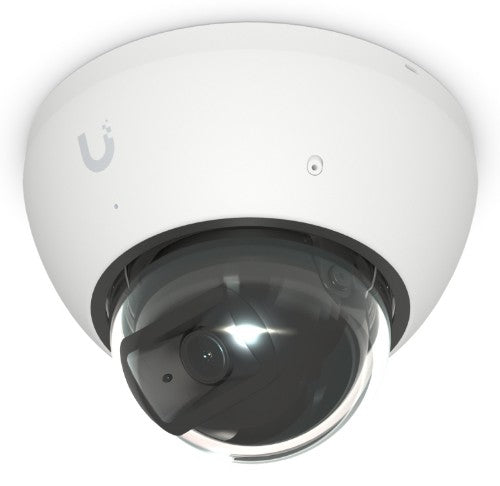

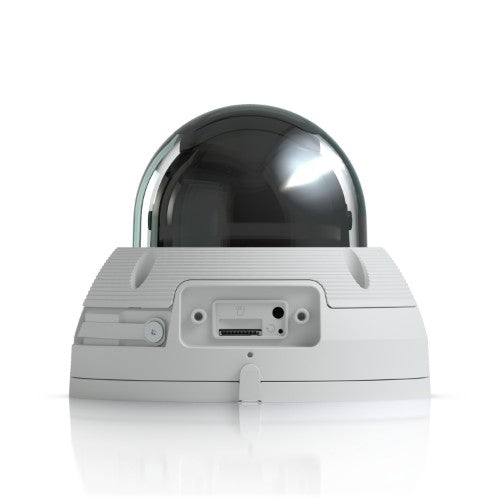

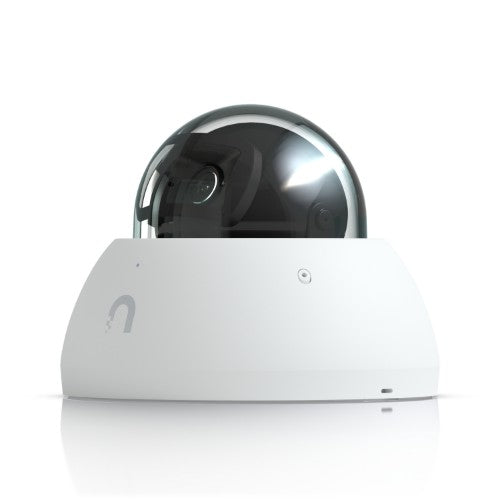

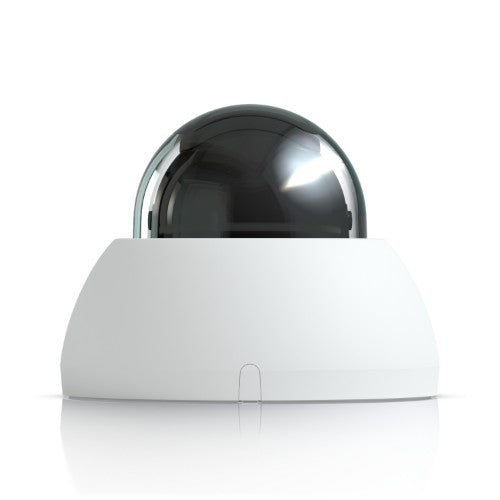

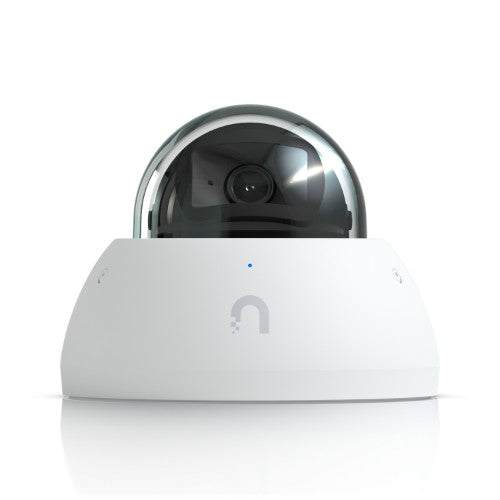

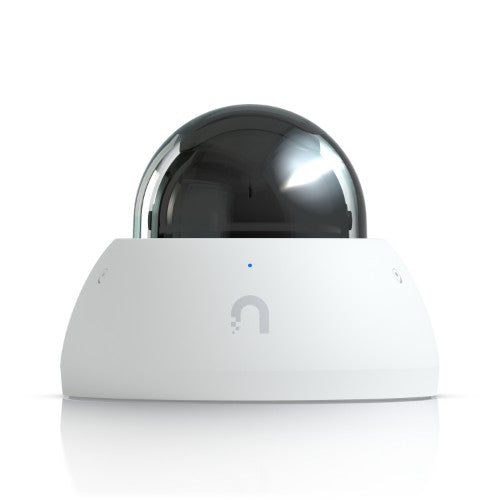

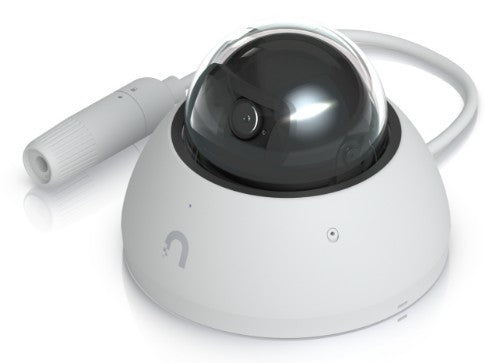

Ubiquiti AI Dome IP security camera Indoor & outdoor 3840 x 2160 pixels Ceiling/wall

1/1.8" 8MP, 4K 3840 x 2160 (16:9), IP66, IK10, IR LED, Quad-core Arm Cortex-A53, GbE RJ45, PoE, D 118 x 90.8 mm

Key Features

• 4K (8MP) video resolution
• Ultra-wide viewing angle (109.9°)
• 40 m (131 ft) IR night vision
• Advanced AI: Face and license plate recognition
• Record audio with an integrated microphones
• Micro SD card support for edge recording
• Connect and power using PoE
• Weatherproof (outdoor exposed)

Description

All-weather, vandal-proof 4K PoE dome camera with enhanced AI capabilities and long-range IR night vision.

Specifications

Performance
Infrared (IR) cut-off filter	Yes
Remote viewing	Yes
Processor model	ARM Cortex-A53
Type	IP security camera
Connectivity technology	Wired
PTZ control	Yes
Placement supported	Indoor & outdoor
Cable length	0.3 m
Built-in light	Yes
Built-in processor	Yes
Design
Weatherproof	Yes
IK code	IK10
Form factor	Dome
Product colour	White
Mounting type	Ceiling/wall
Protection features	Vandal proof
LED indicators	Yes
International Protection (IP) code	IP66
Housing material	Aluminium, Polycarbonate (PC)
Camera
Lens viewing angle, horizontal	109.9°
Lens viewing angle, vertical	56.7°
Lens viewing angle, diagonal	134.1°
Image sensor
Optical sensor size	25.4 / 1.8 mm (1 / 1.8")
Lens system
Number of lenses	1
Night vision
Night vision	Yes
Night vision distance	40 m
LED type	IR
Video
Image quality adjustment	Brightness, Colour depth, Contrast, DNR, Sharpness
Text caption overlay	Yes
Privacy masking	Yes
Maximum resolution	3840 x 2160 pixels
Supported video modes	2160p
Frame rate	30 fps
Total megapixels	8 MP
Audio
Built-in microphone	Yes
Network
Ethernet interface type	Gigabit Ethernet
Ethernet LAN	Yes
Storage
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Connectivity technology	Wired
Security
Light sensor	Yes
Management features
Web-based management	Yes
Reset button	Yes
Smartphone/tablet remote support	Yes
Power
Power source type	DC, PoE
Power consumption (max)	10 W
DC output voltage	42.5, 57
Operational conditions
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	10 - 90%
System requirements
Mobile operating systems supported	Android, iOS
Weight & dimensions
Height	90.8 mm
Diameter	11.8 cm
Weight	700 g
Cable length	0.3 m
Features
License plate recognition	Yes
Sustainability
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC)
Packaging content
Number of cameras	1
Screws included	Yes
Mounting kit	Yes
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC)
