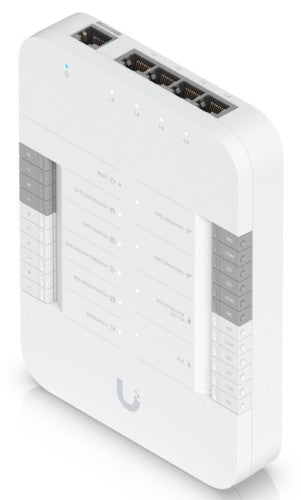

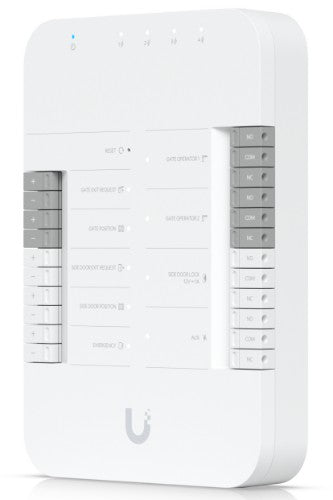

Ubiquiti Gate Hub security door controller Housing Ethernet

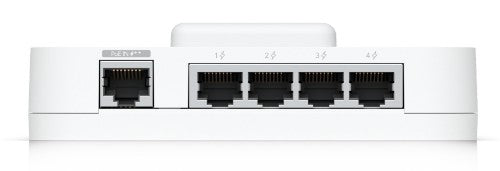

5x RJ-45, PoE++, Din-rail

Key Features

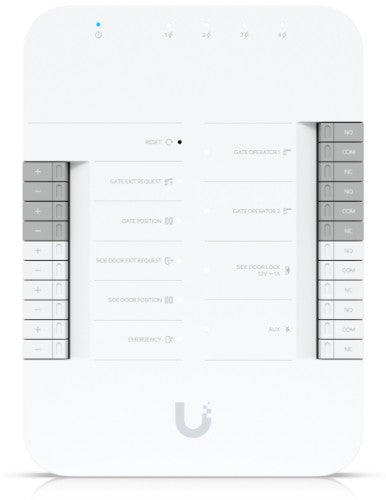

• (2) Gate operator terminals (dry)
• (1) Lock terminal (12V) for side door
• (1) AUX terminal for an external siren
• (5) Additional inputs (sensors and emergency)
• License plate unlock (when paired with AI Camera)
• Connect and power using PoE++
• Connect up to four UniFi Access readers or UniFi Protect cameras

Description

An advanced Gate Hub enabling seamless gate access control via connected Access readers or Intercom.

Specifications

Technical details
Case design	Housing
Built-in UPS	No
Interface	Ethernet
Exit request	Yes
LED indicators	Yes
Performance
Ethernet LAN	Yes
Number of built-in relays	3
Certification	CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Ethernet LAN data rates	10,100,1000 Mbit/s
Power
Operating voltage	50 V
Operating current	1 A
Ports & interfaces
Ethernet LAN (RJ-45) ports	5
Operational conditions
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	126 mm
Weight	460 g
Height	175 mm
Depth	26 mm
