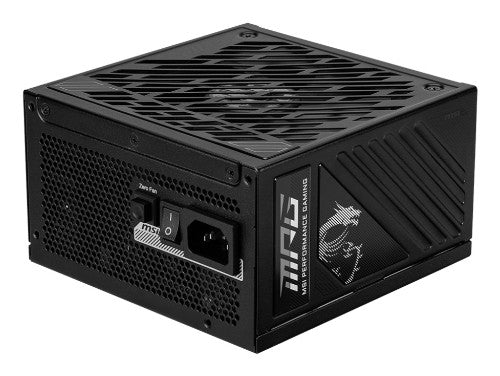

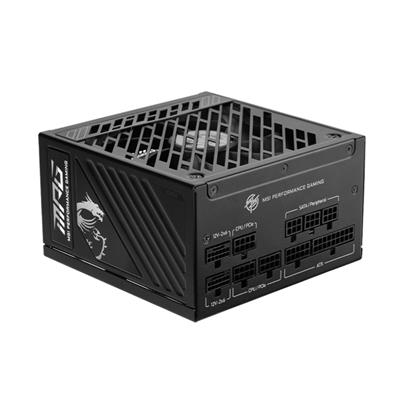

MSI MPG A1000GS PCIE5 power supply unit 1000 W 24-pin ATX ATX Black

1000W, 135 mm, 80 PLUS Gold

Description

Featuring ATX 3.1 and PCIe 5.1 support with two 12V-2x6 connectors, these PSUs are built to handle NVIDIA’s 50 series graphics cards and AI PCs with ease. Advanced thermal solutions ensure cool, stable, and efficient operation, even under heavy loads, giving you the reliability and durability you need for gaming, streaming, or AI-powered tasks.

Specifications

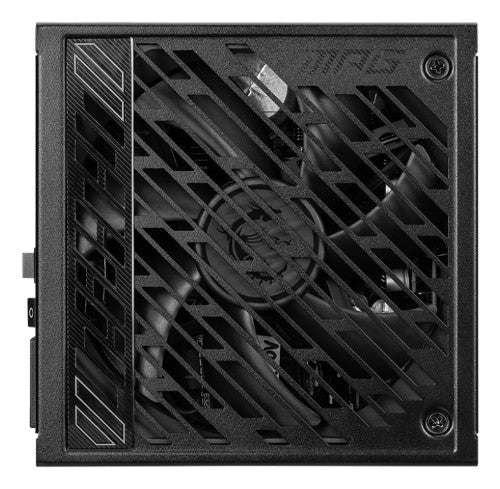

Cooling
Fan diameter	13.5 cm
Cooling type	Active
Design
80 PLUS certification	80 PLUS Gold
Product colour	Black
Fan diameter	13.5 cm
Illumination	No
Cooling type	Active
Power
Total power	1000 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	120 W
Combined power (+12V)	1000 W
Combined power (+5V)	120 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	22 A
Max output current (+12V)	83.3 A
Max output current (+5V)	22 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Efficiency	90%

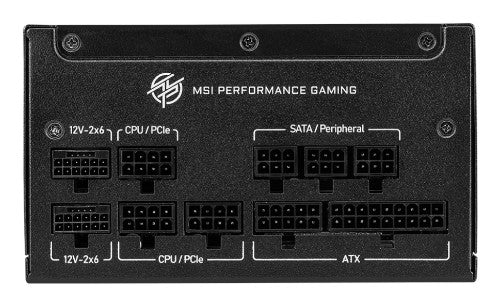

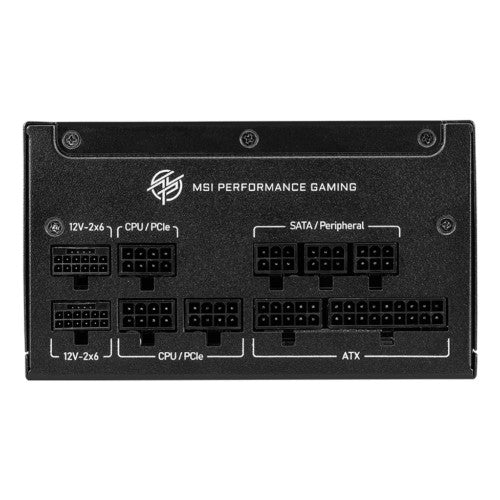

Ports & interfaces
Motherboard power cable length	60 cm
Motherboard power connector	24-pin ATX
Number of SATA power connectors	8
Peripheral (Molex) power connectors (4-pin)	4
EPS power connector (8-pin)	No
PCI Express power connectors (6+2 pin)	1
Cabling type	Fully-Modular
EPS power connector (4+4 pin)	Yes
PCI Express power connectors (16-pin)	2
Performance
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Gold
Purpose	PC
Bearing technology	FDB
Weight & dimensions
Width	150 mm
Depth	150 mm
Height	86 mm
Certificates
80 PLUS certification	80 PLUS Gold
