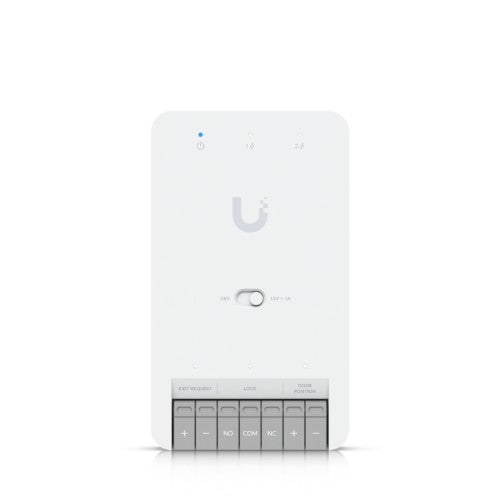

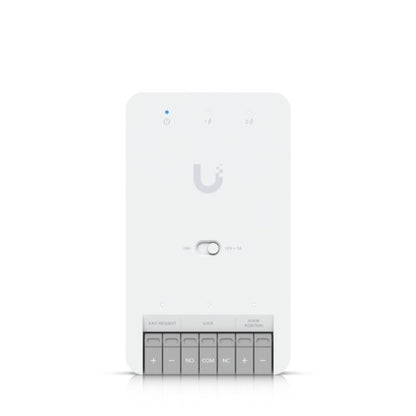

Ubiquiti Door Hub Mini security door controller 1 door(s) Ethernet

Single door, 3x GbE RJ45, PoE++, polycarbonate, metal, 113 x 66 x 27.6 mm

Key Features

• (1) Lock terminal (12V and Dry switchable)
• (2) Additional inputs (sensor and button)
• Connect and power via PoE++
• Connect up to two UniFi Access Readers or Protect Cameras

Description

Compact Access Control Hub for a single door.

Specifications

Technical details
Maximum number of doors	1 door(s)
Interface	Ethernet
Exit request	Yes
LED indicators	Yes
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC)
Performance
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Power
DC voltage range	50 V
Ports & interfaces

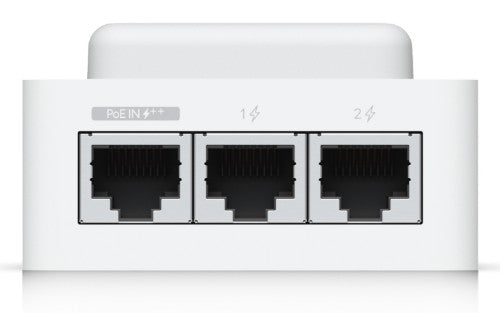

Ethernet LAN (RJ-45) ports	3
Operational conditions
Operating temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	66 mm
Weight	190 g
Height	113 mm
Depth	27.6 mm
