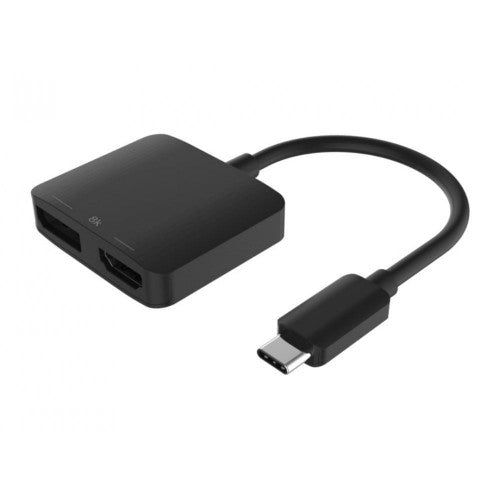

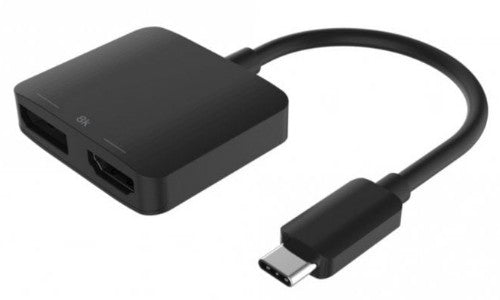

Cables Direct USB3C-HDMI-DP01A laptop dock/port replicator Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Black

Type-C to 8K HDMI/DisplayPort with DP1.4 Alt mode

Key Features

• Supports DP1.4a Alt mode
• Supports HDMI max 8K/60Hz,YCbCr4:2:0
• Supports DP max 8K/30Hz,RGB
• Supports HBR3
• Supports DSC1.1/1.2a or uncompressed video
• Supports 6/8/10/12 bit color depth
• Supports pixel format RGB/YCbCr4:4:4/YCbCr4:2:2/YCbCr4:2:0
• Supports positive and negative connection
• Supports Dynamic HDR10+
• Supports HDCP1.4&HDCP2.3 specification
• Supports 1 to 32 channels LPCM 192kHz audio output
• Supports HBR audio up to 1536kHz
• Supports dual-video output up to 4K / 60Hz with MST mode or single-port video output up to 8K / 30Hz or 4K / 120Hz

Description

This is a Type-C to HDMI and DP adapter which allows you to transmit signals from your host PC to displays. The adapter supports dual-video output up to 4K / 60Hz with MST mode or single-port video output up to 8K. It can work on all Type-C hosts that support DP Alt mode.

Specifications

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity	0
HDMI ports quantity	1
DisplayPorts quantity	1
Connectivity technology	Wired
DisplayPort version	1.4
HDCP version	1.4/2.3
HDCP	Yes
Network
Ethernet LAN	No
Performance
Product colour	Black
Plug and Play	Yes
HD type	8K Ultra HD
Maximum refresh rate	60 Hz
High Dynamic Range (HDR) supported	Yes
Technical details
Product colour	Black
Plug and Play	Yes
Design
Product colour	Black
Packaging data
Quantity per pack	1 pc(s)
Packaging content
Quantity per pack	1 pc(s)
