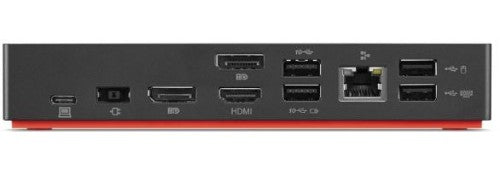

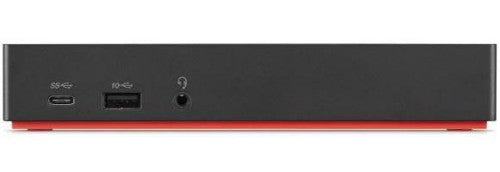

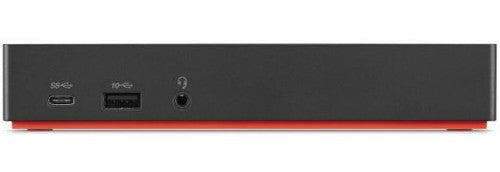

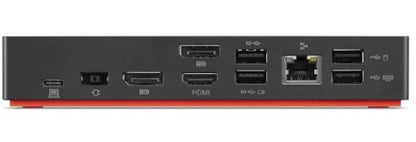

Lenovo 40AS0090DK laptop dock/port replicator Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Black

ThinkPad USB-C Dock Gen 2

Key Features

• One Connection, no limitations: Think of all the time you'd save if you could connect all your peripherals at once, transfer USB data at lightning - fast 10Gbps speeds, and have access to a stable, stress - free wired network connection
• Jaw-dropping 4K or multiple displays *: the days of being limited by your notebook's capabilities are over. Now you can experience vivide 4K on a single screen or take multitasking to the next level with Multi displays
• Ready for your command: Ideal for being the centrerpiece of your workspace. Completely control your ThinkPad systems with PXE Boot, System Wake-on-LAN. It also supports passing ThinkPad MAC address through the dock
• Dock has the ability to support DisplayPort 1.4 and HDMI 2.0 for max 1 x 4K@60Hz, but the real video output would depend on the system's output

Description

ThinkPad USB-C Dock Gen 2 (40AS), next generation of USB-C one-cable universal docking solutions. Supports vivid 4K displays or multiple 1080p screens, charge your notebook, connect legacy USB peripherals, wired networks and rapidly charge your mobile devices.

Specifications

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Headphone connectivity	3.5 mm
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.0
DisplayPorts quantity	2
Microphone in	No
Headphone outputs	0
Connectivity technology	Wired
Network
Wake-on-LAN ready	Yes
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
Maximum digital resolution	3840 x 2160 pixels
Number of displays supported	3
Product colour	Black
Card reader integrated	No
Brand compatibility	Lenovo
Compatibility	ThinkPad T490 (20N2, 20N3, 20Q9, 20QH), ThinkPad T590 (20N4, 20N5), ThinkPad X280 (20KE,20KF), ThinkPad T480 (20L5,20L6), ThinkPad X1 Carbon 6th (20KH, 20KG), ThinkPad X270 (20HM, 20HN, 20K5, 20K6), ThinkPad T480s (20L7,20L8)
Cable lock slot	Yes
Plug and Play	Yes
Data transfer rate	10 Gbit/s
Certification	FCC/ICES, CE, KCC, RCM, BSMI, VCCI, CB, cULus, EAC, TUV- Mark, Serbia Kvalitet, LoA, Israel SII, Ukraine DoC, NOM
HD type	4K Ultra HD
Technical details
Product colour	Black
Brand compatibility	Lenovo
Compatibility	ThinkPad T490 (20N2, 20N3, 20Q9, 20QH), ThinkPad T590 (20N4, 20N5), ThinkPad X280 (20KE,20KF), ThinkPad T480 (20L5,20L6), ThinkPad X1 Carbon 6th (20KH, 20KG), ThinkPad X270 (20HM, 20HN, 20K5, 20K6), ThinkPad T480s (20L7,20L8)
Cable lock slot	Yes
Plug and Play	Yes
Data transfer rate	10 Gbit/s
Harmonized System (HS) code	84733020
Storage
Card reader integrated	No
Power
Power source type	DC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power supply	90 W
Software
Windows operating systems supported	Windows 10, Windows 7
Operational conditions
Operating temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	20 - 95%
Weight & dimensions
Weight	325 g
Width	171 mm
Depth	80 mm
Height	30.8 mm
Package weight	960 g
Package width	210 mm
Package depth	158 mm
Package height	75 mm
Design
Windows operating systems supported	Windows 10, Windows 7
Product colour	Black
Cable lock slot	Yes
Certification	FCC/ICES, CE, KCC, RCM, BSMI, VCCI, CB, cULus, EAC, TUV- Mark, Serbia Kvalitet, LoA, Israel SII, Ukraine DoC, NOM
Packaging data
Quantity per pack	1 pc(s)
Package weight	960 g
Package width	210 mm
Package depth	158 mm
Package height	75 mm
Packaging content
Manual	Yes

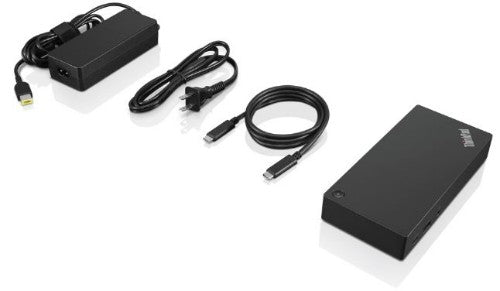

Cables included	AC, USB Type-C
AC adapter included	Yes
Quantity per pack	1 pc(s)
Certificates
Certification	FCC/ICES, CE, KCC, RCM, BSMI, VCCI, CB, cULus, EAC, TUV- Mark, Serbia Kvalitet, LoA, Israel SII, Ukraine DoC, NOM
Logistics data
Harmonized System (HS) code	84733020
