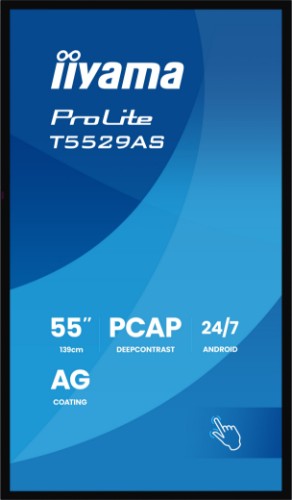

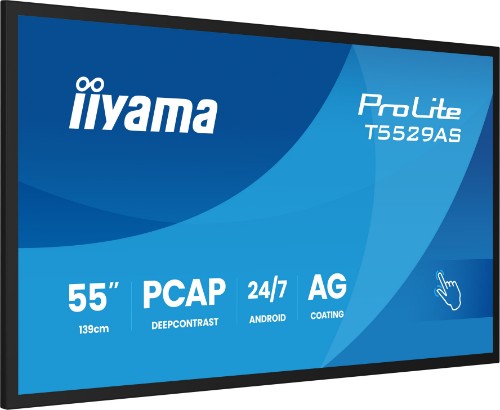

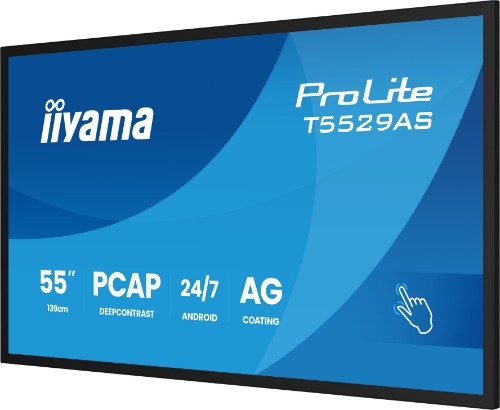

iiyama T5529AS-B1AG computer monitor 138.7 cm (54.6") 3840 x 2160 pixels 4K Ultra HD LED Touchscreen Black

55" All-in-One PCAP Interactive Display for Smart Collaboration Spaces

Reasons To Buy

Android OS

Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

iiSignage²

iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.

USB-C Loop Through

One cable, zero clutter. USB-C Loop Through lets you connect and daisy-chain devices with ease—video, data, and power all in one go. It’s plug, play, and pass it on. Smart connectivity that keeps your setup clean and simple.

Touch Pens

Two stylish dual tip Touch pens are included and they can be placed at both sides of the display at the magnetic holding spots.

Huddle Spaces

Turn these small meeting rooms into neat Collaboration spaces by employing the embedded applications like Android OS, EShare and Whiteboard, a selection of intuitive and practical tools installed on our PCAP interactive Touchscreens. With Android OS you can easily customize the display by installing applications directly to it. With the EShare app you can share, stream and edit content from any device directly on screen and transform your team meetings into an easy, fast and seamless interactive session.

Signal FailOver

FailOver is a feature which automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs (incl. Browser, Media Player and Custom) and ensures your content is always actively displayed, assuring active content at all times.

Description

The ProLite T5529AS-B1AG is a 55" all-in-one PCAP touchscreen display built for the evolving needs of modern workspaces, especially huddle spaces where creativity, flexibility, and seamless sharing take center stage. Powered by Android OS, this interactive display delivers a user-friendly and highly adaptable experience. You can install your preferred apps directly on the device, enabling customized workflows tailored to your environment — whether in a collaborative meeting area, an enterprise innovation hub, or an educational breakout room. The USB-C loop-through feature simplifies connectivity by allowing multiple displays to be easily daisy-chained while transmitting power, data, and video — all through a single cable. This reduces cable clutter and setup time, making it ideal for dynamic workspaces. The included wall mounting bracket makes installation straightforward and secure. With iiSignage² (CMS), iiControl (DMS), and iiShare (Wireless Presentation) you gain full control over content and messaging, even remotely — perfect for updating shared information or branded visuals on the fly. The integrated EShare app brings wireless screen sharing and collaboration to life, supporting multi-user interaction and real-time ideation. The T5529AS-B1AG isn’t just a display — it’s a collaboration tool designed to empower teams, streamline communication, and make every meeting count.

Specifications

Display
HDCP	Yes
Display brightness (typical)	500 cd/m²
Screen shape	Flat
Display number of colours	1.07 billion colours
Native aspect ratio	16:9
HD type	4K Ultra HD
Display technology	LED
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.315 x 0.315 mm
Horizontal scan range	28 - 160 kHz
Viewable size, horizontal	121 cm
Viewable size, vertical	68 cm
Backlight type	Direct LED
Display resolution	3840 x 2160 pixels
Response time	6.5 ms
Display diagonal	138.7 cm (54.6")
Contrast ratio (typical)	4000:1
Surface hardness	8
Touchscreen	Yes
Number of simultaneous touchpoints	20
Panel type	VA
Display diagonal (metric)	139 cm
Touchscreen technology	Projected capacitive system
LED backlight	Yes
Display brightness	500 cd/m²
Positional accuracy	2.5 mm
Response time measurement type	GTG (Gray to Gray)
Anti-glare screen	Yes
Audio
Built-in speaker(s)	Yes
RMS rated power	20 W
Performance
Built-in speaker(s)	Yes
RMS rated power	20 W
Mean time between failures (MTBF)	50000 h
Operating system installed	Android
Operating system version	14
Operating hours (hours/days)	24/7
Management features
On Screen Display (OSD)	Yes
Number of OSD languages	8
On Screen Display (OSD) languages	Multi
Network
Ethernet LAN (RJ-45) ports	1
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Wi-Fi	Yes
Ethernet LAN	Yes
Multimedia
Number of speakers	2
Built-in speaker(s)	Yes
RMS rated power	20 W
Design
Certification	CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA, cTUVus
Product colour	Black
Front bezel colour	Black
Glass thickness	3.7 mm
Mean time between failures (MTBF)	50000 h
Ports & interfaces
USB version	2.0
DVI port	No
HDMI ports quantity	2
HDCP	Yes
HDMI version	1.4/2.0
USB Type-C DisplayPort Alternate Mode	Yes
HDCP version	1.4/2.2
USB Touch port	Yes
RS-232C	Yes
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Wi-Fi	Yes
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Technical details
Placement supported	Indoor
Mean time between failures (MTBF)	50000 h
Product colour	Black
Front bezel colour	Black
Built-in processor	Yes
Power supply type	Internal
Active display area (W x H)	1209.6 x 680.4 mm
Multi-touch	Yes
Weight (with stand)	26.8 kg
Surface hardness	8
Touchscreen	Yes
Number of simultaneous touchpoints	20
RS-232C	Yes
Ergonomics
VESA mounting	Yes
Panel mounting interface	300 x 400 mm
On Screen Display (OSD)	Yes
Number of OSD languages	8
On Screen Display (OSD) languages	Multi
Power
Power supply type	Internal
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	104 W
Power consumption (off)	0.3 W
Energy efficiency scale	A to G
Energy efficiency class (SDR)	G
Energy efficiency class (HDR)	Not available
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	-20 - 60%
Weight & dimensions
Width (with stand)	1258.2 mm
Depth (with stand)	42.3 mm
Height (with stand)	728.8 mm
Weight (with stand)	26.8 kg
Package width	1400 mm
Package depth	1400 mm
Package height	850 mm
Package weight	32.7 kg
Packaging data
Package width	1400 mm
Package depth	1400 mm
Package height	850 mm
Package weight	32.7 kg
Remote control included	Yes
Quick start guide	Yes
Cables included	AC, HDMI
Remote control batteries included	Yes
Packaging content
Remote control included	Yes
Quick start guide	Yes
Cables included	AC, HDMI
Batteries included	Yes
Remote control batteries included	Yes
Thin Client
Operating system installed	Android
Processor cores	4
Processor architecture	ARM Cortex-A73
Other features
Built-in processor	Yes
Active display area (W x H)	1209.6 x 680.4 mm
Multi-touch	Yes
USB ports quantity	2
Placement supported	Indoor
Mean time between failures (MTBF)	50000 h
Certification	CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA, cTUVus
Ethernet LAN (RJ-45) ports	1
Positional accuracy	2.5 mm
Remote control included	Yes
Quick start guide	Yes
Surface hardness	8
Energy efficiency scale	A to G
USB Type-C DisplayPort Alternate Mode	Yes
Power supply type	Internal
Ethernet LAN	Yes
Touchscreen	Yes
Number of simultaneous touchpoints	20
Front bezel colour	Black
Certificates
Certification	CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA, cTUVus
