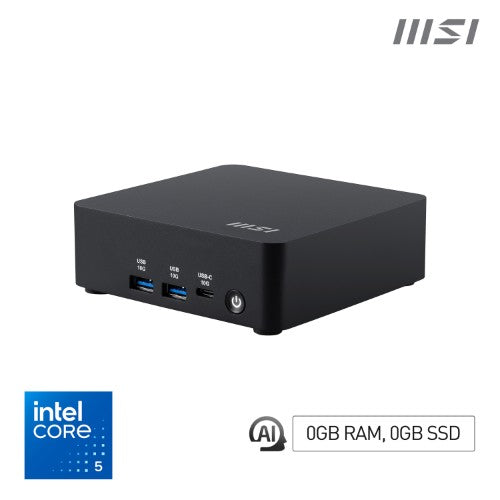

MSI Cubi NUC AI 1UMG Intel Core Ultra 5 125H , Barebone, NUC, SFF, Mini Computer, HTPC, (NO RAM, NO Storage, NO OS), Intel Graphics/DDR5/Dual ThunderBolt 4/Dual HDMI/Dual LAN/WiFi 6E/BT 5.3/VESA

MSI Cubi NUC AI 1UMG Intel Core Ultra 5 125H , Barebone, NUC, SFF, Mini Computer, HTPC, (NO RAM, NO Storage, NO OS), Intel Graphics/DDR5/Dual ThunderBolt 4/Dual HDMI/Dual LAN/WiFi 6E/BT 5.3/VESA

Key Features

• Up to Intel® CoreTM Ultra 5 processor 125H with Intel® AI Boost NPU
• Supports DDR5 5200MHz memory
• Supports 1x M.2 2280 SSD (PCIE, factory pre-installed), 1x M.2 2242 SSD (PCIE)
• Quadruple monitor support (Thunderbolt 4, HDMI 2.1)
• 1 x USB 10GbpsType-C port front, 2 x USB 10GbpsType-A ports front
• MSI Power Link support
• MSI Power Meter software
• Dual 2.5G LAN, Wi-fi 6E AX211 & BT 5.3

Description

The Cubi NUC AI 1UM is a mini pc equipped with Intel® AI Boost NPU and Intel® CoreTM Ultra processor, and it won the Red Dot Design Award in 2024. With quadruple monitor support, dual 2.5G LAN network capabilities, sustainable material and packing design, the Cubi NUC AI is compact, versatile, yet capable mini desktop PC for home or the office with AI features.

Up to Intel® CoreTM Ultra 5 processor 125H with Intel® AI Boost NPU -Equipped with a built-in Intel® AI Boost NPU, the Cubi NUC AI Series provides users with an AI-ready PC experience

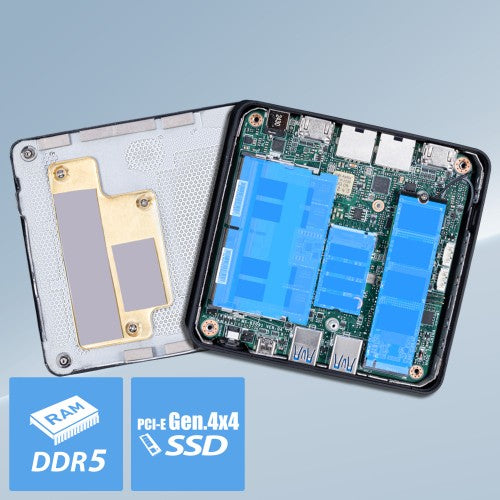

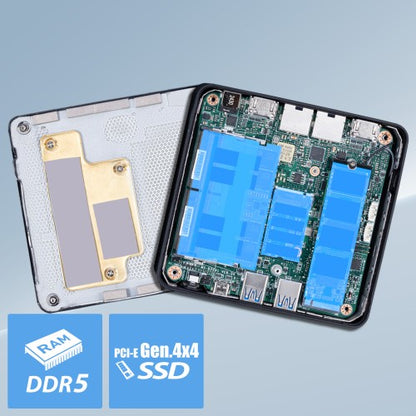

RAM capacity: The Cubi NUC AI Series can support DDR5 5200MHz memory (2 x SO-DIMM, up to 64GB).

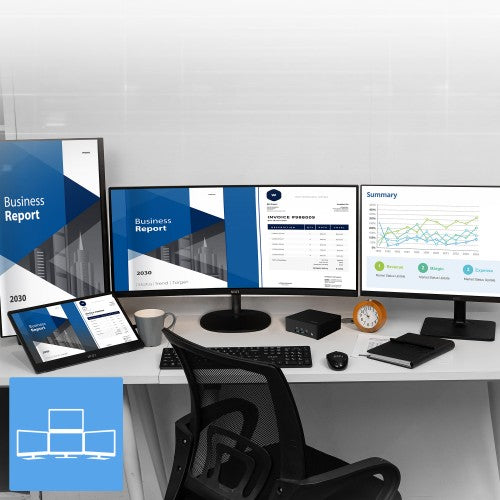

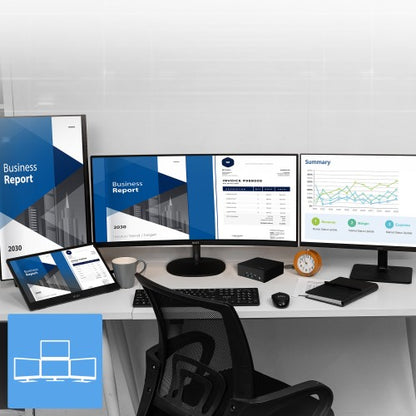

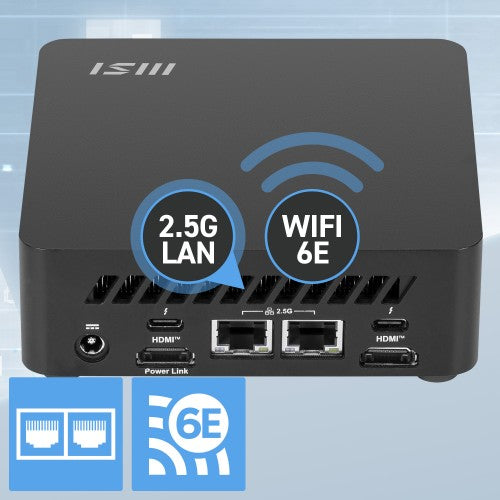

The rear I/O panels include two Thunderbolt 4, two HDMI 2.1 outputs, which support quadruple monitor setups for improved workflow efficiency or previewing e-commerce content
Network connectivity includes Intel wireless, Bluetooth, and dual 2.5G ethernet LAN
dTPM 2.0 (discrete Trusted Platform Module) hardware technology provides security for storing sensitive data & passwords
Kensington Lock slot included

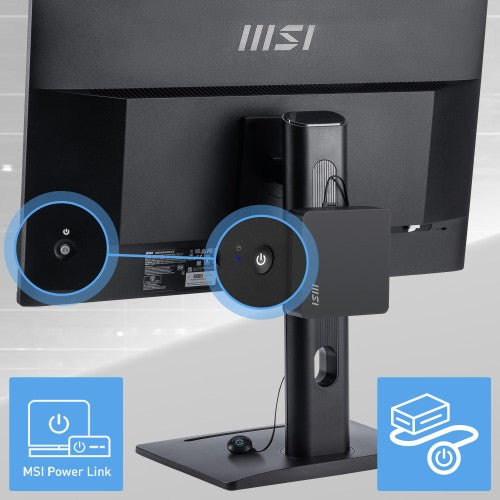

The MSI Power Link allows the power button of MSI-selected monitors to turn on the Cubi NUC AI Series
The chassis is VESA-mountable (standard 100x100 & 75x75), which can transform a standard compact desktop layout into an ultra-minimalist, distraction-free environment

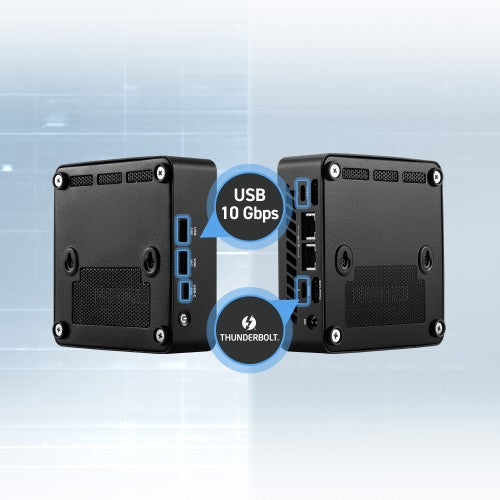

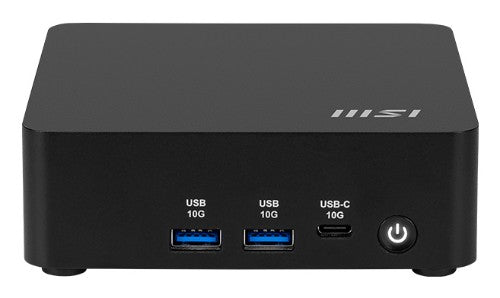

The front 1 x USB 10Gbps Type C and 2 x Type A ensure that plugging in and transferring data between devices is quick and hassle-free
The two rear Thunderbolt 4 ports support the display and power delivery output of 15W
Made with PCR (Post-consumer Recycled) plastic materials
Reduce waste by using a recycled molded pulp tray packing design
Manufatured with 99% of renewable energy in factory
MSI AI Engine offers multiple optimizations that can help lighten the workload
Power Meter enables one-click power saving, carbon emission calculation & electricity cost estimation

Specifications

Motherboard
Motherboard form factor	NUC
Processor socket	BGA 2049
Number of processors supported	1
Supported processor frequency (max)	4.5 GHz
Processor
Thermal Design Power (TDP)	28 W
L3 cache	8 MB
Built-in processor	Yes
Processor model	125H
Processor boost frequency	4.5 GHz
Processor threads	18
Processor frequency	1.2 GHz
Processor socket	BGA 2049
Processor lithography	7 nm
Processor cores	14
Processor family	Intel Core Ultra 5
Number of processors supported	1
Supported processor frequency (max)	4.5 GHz
L2 cache	10 MB
Processor manufacturer	Intel
ECC supported by processor	No
Processor cache	18 MB
Performance cores	4
Efficient cores	8
Performance-core Max Turbo Frequency	4.5 GHz
Efficient-core Max Turbo Frequency	3.5 GHz
Performance-core base frequency	1.2 GHz
Low Power Efficient-cores	2
Low Power Efficient-core Base Frequency	800 MHz
Memory
Memory slots type	SO-DIMM
Number of memory slots	2
Memory channels	Dual-channel
ECC	No
Supported memory types	GDDR5
Supported memory clock speeds	5200 MHz
Maximum internal memory	64 GB
Non-ECC	Yes
Storage
Supported storage drive types	SSD
Storage drive sizes supported	M.2
Storage drive interface	PCI Express
Number of storage drives supported	2
Card reader integrated	No
NVMe	Yes
Audio
Intel® High Definition Audio (Intel® HD Audio)	Yes
Built-in speaker(s)	No
Network
Near Field Communication (NFC)	No
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Bluetooth version	5.2
Bluetooth	Yes
Ethernet LAN	Yes
Wi-Fi	Yes
LAN controller	Intel I226-V
Bluetooth Low Energy (BLE)	Yes
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX211
Ports & interfaces
Thunderbolt ports quantity	2
DC-in jack	No
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
HDMI version	2.1
VGA (D-Sub) ports quantity	0
USB 2.0 ports quantity	0
HDMI ports quantity	2
Ethernet LAN (RJ-45) ports	1
Thunderbolt 4 ports quantity	2
Expansion slots
Number of M.2 (M) slots	2
Design
Motherboard form factor	NUC
VESA mounting	Yes
Product type	Mini PC barebone
On/off switch	Yes
Panel mounting interface	100 x 100 mm
Cooling type	Passive
Product colour	Black
Chassis type	Cube
Performance
Motherboard form factor	NUC
Intel Visual BIOS	No
Intel Express BIOS update	No
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Trusted Platform Module (TPM) version	2.0
Processor socket	BGA 2049
Operating system installed	No
Number of processors supported	1
Supported processor frequency (max)	4.5 GHz
Commodity Classification Automated Tracking System (CCATS)	740.17B1
Export Control Classification Number (ECCN)	5A992.C
Processor special features
Intel Visual BIOS	No
Intel TSX-NI	No
Intel® Smart Response Technology	No
Intel Smart Connect Technology	No
Intel® Smart Cache	Yes
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Secure Key	Yes
Intel® Matrix Storage Technology (Intel® MST)	No
Intel Express BIOS update	No
Intel® OS Guard	Yes
Intel Stable Image Platform Program (SIPP)	No
Thermal Monitoring Technologies	Yes
Intel® Wireless Display (Intel® WiDi)	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® Turbo Boost Technology	Yes
Intel Trusted Execution Technology	No
Intel® Quick Sync Video Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel Flex Memory Access	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Demand Based Switching	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel 64	Yes
Idle States	Yes
Execute Disable Bit	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel® Rapid Start Technology	No
Intel Advanced Management Technology	No
Conflict-Free	Yes
Intel Clear Video Technology	Yes
Intel® Unite™	No
Intel Unite installed	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Optane™ Memory Ready	No
Intel® Virtualization Technology (Intel® VT)	Yes
Intel Rapid Storage Technology	Yes
Intel® High Definition Audio (Intel® HD Audio)	Yes
Intel Dual Display Capable Technology	Yes
Embedded options available	No
Intel On-Demand Power Redundancy Technology	No
Intel® Platform Trust Technology (Intel® PTT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel® vPro™ Platform Eligibility	No
Low Power Efficient-cores	2
Low Power Efficient-core Base Frequency	800 MHz
Colour
Product colour	Black
Technical details
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Virtualization Technology (Intel® VT)	Yes
Intel Rapid Storage Technology	Yes
Intel® High Definition Audio (Intel® HD Audio)	Yes
Intel Dual Display Capable Technology	Yes
Embedded options available	No
Panel mounting interface	100 x 100 mm
Trusted Platform Module (TPM) version	2.0
Quick start guide	No
Processor cores	14
Intel On-Demand Power Redundancy Technology	No
Cooling type	Passive
Chassis type	Cube
Introduction year	2025
Introduction month	June
Warranty period	3 year(s)
PSTI certified	No
Not classified as hazardous under GHS	No
Packaging data
Power cord included	Yes
Drivers included	No
AC adapter included	No
Package width	205 mm
Package depth	220 mm
Package height	94 mm
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance	Yes
Software
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Operating system installed	No
Management features
On/off switch	Yes
Logistics data
Country of origin	China
Certification
Waste Electrical and Electronic Equipment (WEEE) compliance	Yes
Power
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power supply type	External AC adapter
Power supply	120 W
Number of power supply units	1
Operational conditions
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	0 - 90%
Operating temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	0 - 85%

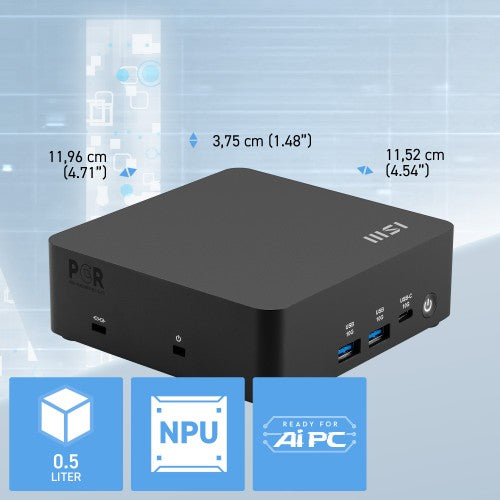

Weight & dimensions
Width	119.6 mm
Depth	115.2 mm
Height	37.5 mm
Package width	205 mm
Package depth	220 mm
Package height	94 mm
Packaging content
Display included	No
Power cord included	Yes
Drivers included	No
AC adapter included	No
Mouse included	No
Quick start guide	No
Keyboard included	No
Other features
Embedded options available	No
Chassis type	Cube
Country of origin	China
Introduction year	2025
Introduction month	June
Warranty period	3 year(s)
