iiyama LH5560UHS-B2AG Signage Display Digital A-board 138.7 cm (54.6") LED Wi-Fi 500 cd/m² 4K Ultra HD Black Built-in processor Android 11 24/7

55" 4K UHD professional digital signage display with advanced control and connectivity options

Reasons To Buy

Android OS

Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

iiSignage²

iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.

Signal FailOver

FailOver is a feature which automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs (incl. Browser, Media Player and Custom) and ensures your content is always actively displayed, assuring active content at all times.

Ultra Slim

With 50 percent depth saving over similar models, the jaw-dropping and best in class 40mm total depth display can be installed discretely and elegantly in all areas.

Flexible Orientation

With the option to switch between landscape and portrait mode, these displays let you get creative with any space. Whether it’s messaging, ads, videos, or safety info, you can tailor your content to grab attention exactly how you want.

Speakers

The built-in speakers offer high-quality sound, ensuring crystal-clear audio during multimedia playback.

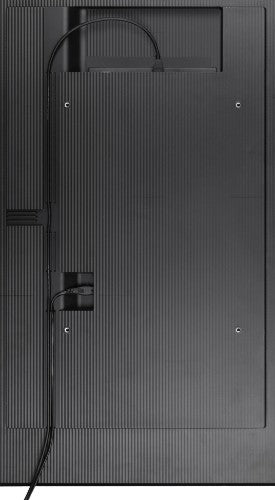

Cable Management

Cables can be neatly tied and routed with the special cable ducts, so they cannot come loose or move around.

Description

Elevate your visual communication with the LH5560UHS-B2AG and unlock the new possibilities for your business. This 500cd/m² high brightness display is a powerful business tool that takes your marketing and communication efforts to the next level. With its Android 11 OS, iiSignage² (Content Management Software), Signal FailOver, and EShare features, this display offers a straightforward user experience, making content creation, management, and sharing a breeze. This ELED VA display consumes significantly less power compared to DLED IPS while maintaining the same level of brightness. Its versatile orientation, sleek design, and 24/7 reliability ensure it seamlessly integrates into any business environment. Whether it's used in retail, corporate, hospitality, or educational settings, the LH5560UHS-B2AG will undoubtedly captivate your audience and leave a lasting impression.

Specifications

Display
Panel type	VA
Display number of colours	1.07 billion colours
Touchscreen	No
Active display area (W x H)	1209.6 x 680.4 mm
Display technology	LED
Display diagonal	138.7 cm (54.6")
Display resolution	3840 x 2160 pixels
Display brightness	500 cd/m²
HD type	4K Ultra HD
Response time	6.5 ms
Contrast ratio (typical)	4000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.315 x 0.315 mm
Display diagonal (metric)	139 cm
Native aspect ratio	16:9
Horizontal scan range	28 - 160 kHz
Anti-glare screen	Yes
Surface hardness	3H
Native refresh rate	60 Hz
Haze rate	25%
Ports & interfaces
USB port	Yes
HDMI version	2.0
RS-232C	Yes
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Wi-Fi	Yes
PC Audio in	Yes
Ethernet LAN	Yes
HDMI ports quantity	3
DVI port	No
Ethernet LAN (RJ-45) ports	1
RS-232 interface	Yes
USB version	2.0
USB ports quantity	2
Audio
Number of built-in speakers	2
RMS rated power	20 W
Built-in speaker(s)	Yes
Design
Product design	Digital A-board
Placement supported	Indoor
Orientation	Horizontal/Vertical
Bezel width (top)	1.33 cm
Bezel width (side)	1.33 cm
Bezel width (bottom)	1.53 cm
Product colour	Black

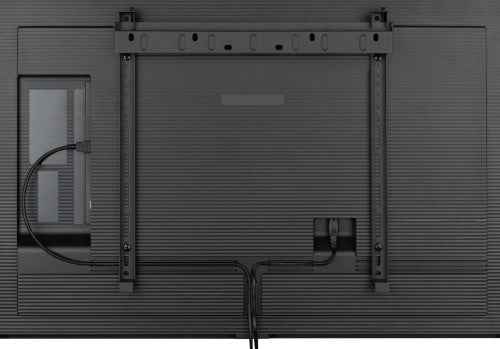

Panel mounting interface	300 x 400 mm
VESA mounting	Yes
Anti-glare screen	Yes
Bezel colour	Black
Wall mountable	Yes
Performance
Purpose	Universal
Operating hours (hours/days)	24/7
Mean time between failures (MTBF)	50000 h
On Screen Display (OSD) languages	Simplified Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Polish, Russian, Slovenian
On Screen Display (OSD)	Yes
Number of OSD languages	15
HDCP	Yes
HDCP version	1.4/2.2
Wi-Fi	Yes
Power
Power consumption (off)	0.3 W
Power consumption (typical)	55 W
Power consumption (standby)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Energy efficiency scale	A to G
Energy efficiency class (SDR)	E
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	54.9 kWh
Computer system
Computer system	No
Processor cores	4
Processor family	ARM Cortex
Processor model	A53
Operating system installed	Android 11
Internal memory	2 GB
Internal storage capacity	16 GB
Processor manufacturer	ARM
Built-in processor	Yes
On-board graphics card model	ARM Mali-G52
Processor architecture	ARM Cortex-A53
Weight & dimensions
Display width	1239.7 mm
Display depth	38.6 mm
Display height	712.5 mm
Display weight	17.6 kg
Packaging data
Package width	1390 mm
Package depth	1390 mm
Package height	850 mm
Package weight	22.9 kg
Quick start guide	Yes
Batteries included	Yes
Remote control included	Yes
Mounting kit	Yes
Cables included	HDMI, Power, RS-232
Packaging content
Quick start guide	Yes
Batteries included	Yes
Remote control included	Yes
Mounting kit	Yes
Cables included	HDMI, Power, RS-232
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Technical details
VESA mounting	Yes
Power supply type	Internal
Panel type	VA
Sustainability certificates	ErP
Compliance certificates	CB, CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
Network
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Wi-Fi	Yes
Ethernet LAN	Yes
Thin Client
Processor family	ARM Cortex
Processor model	A53
Operating system installed	Android 11
Internal memory	2 GB
Internal storage capacity	16 GB
Features
Wall mountable	Yes
Other features
Power supply type	Internal
Panel type	VA
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Wi-Fi	Yes
Mean time between failures (MTBF)	50000 h
Display technology	LED
Bezel width (top)	1.33 cm
Bezel width (side)	1.33 cm
Bezel width (bottom)	1.53 cm
Quick start guide	Yes
Energy efficiency scale	A to G
