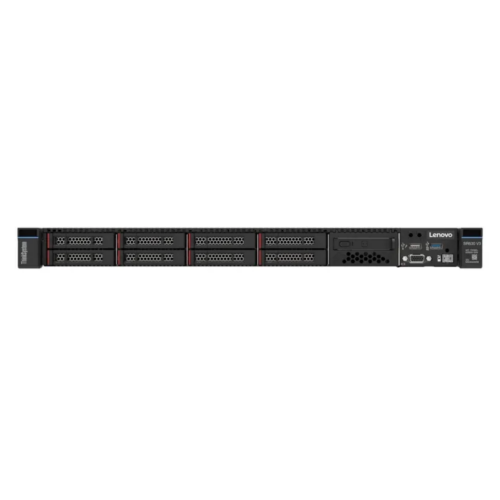

Lenovo ThinkSystem SR630 V3 server Rack (1U) Intel Xeon Silver 4509Y 2.6 GHz 32 GB DDR5-SDRAM 1100 W

1x Intel Xeon Silver 4509Y, 1x 32GB 1Rx4, 940-8i 4GB, 8x 2.5" SAS; Open bay, 2x LP Gen4, 1x1100W Titanium

Description

The Lenovo ThinkSystem SR630 V3 is an ideal 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR630 V3 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.

This product guide provides essential pre-sales information to understand the ThinkSystem SR630 V3 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SR630 V3 and consider its use in IT solutions.

Specifications

Processor
Processor threads	16
Processor cache	22.5 MB
Processor frequency	2.6 GHz
Processor boost frequency	4.1 GHz
Number of processors installed	1
Processor model	4509Y
Processor cores	8
Processor manufacturer	Intel
Motherboard chipset	Intel C741
Processor family	Intel Xeon Silver
Memory
Internal memory	32 GB
Memory layout (slots x size)	1 x 32 GB
Memory slots	32x DIMM
Memory clock speed	5600 MHz
Maximum internal memory	8.19 TB
Internal memory type	DDR5-SDRAM
ECC	Yes
Storage
Supported RAID controllers	940-8i 4GB
Hot-swap	Yes
Supported HDD sizes	2.5"
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, 50, 60
Optical drive type	No
Number of HDDs supported	8
Internal drive bays	8
Graphics
Maximum graphics card memory	16 MB
On-board graphics card	Yes
Network
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Cabling technology	10/100/1000Base-T(X)
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
VGA (D-Sub) ports quantity	1
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	1
Optical drive
Optical drive type	No
Design
Rack mounting	Yes
Optical drive type	No
Chassis type	Rack (1U)
Product colour	Black, Steel
Cooling type	Active
Performance
Compatible operating systems	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, Ubuntu Server
Performance management	XClarity Controller Platinum
Trusted Platform Module (TPM) version	2.0
Trusted Platform Module (TPM)	Yes
Software
Compatible operating systems	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, Ubuntu Server
Power
Number of redundant power supplies supported	1
Redundant power supply (RPS) support	Yes
Power supply	1100 W
Management features
Performance management	XClarity Controller Platinum
Technical details
Trusted Platform Module (TPM) version	2.0
Trusted Platform Module (TPM)	Yes
Supported HDD sizes	2.5"
Rack mounting	Yes
Ethernet interface type	Gigabit Ethernet
Chassis type	Rack (1U)
Weight & dimensions
Width	440 mm
Weight	20.8 kg
Height	43 mm
Depth	773 mm
