iiyama 15.6” Full HD PCAP 10pt touch screen with Android and POE Technology
Connectivity
The RJ45 (LAN) connector supporting Power over Ethernet technology (POE*) allows to provide both data connection and power by a single cable, simplifying all installations. Together with the built-in microphone and speakers it offers interactive and almost limitless application possibilities. *Requires 30W

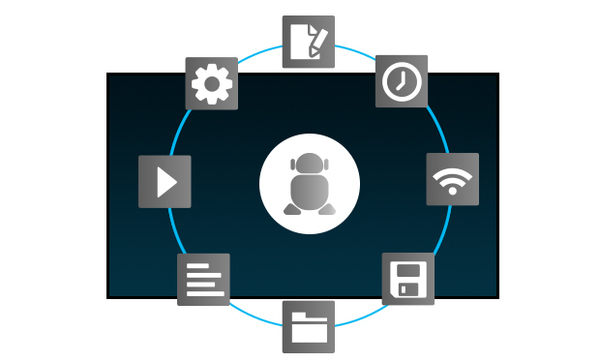

Android OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

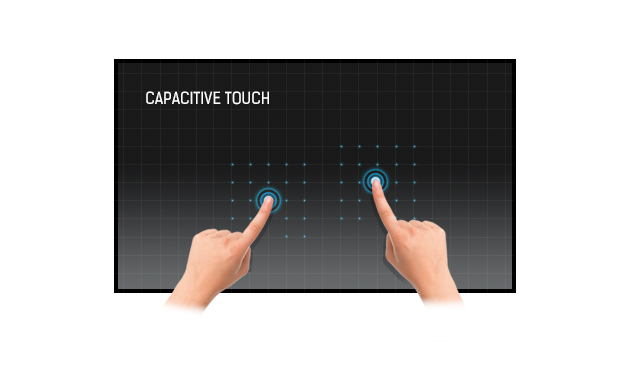

Touch technology - Capacitive
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

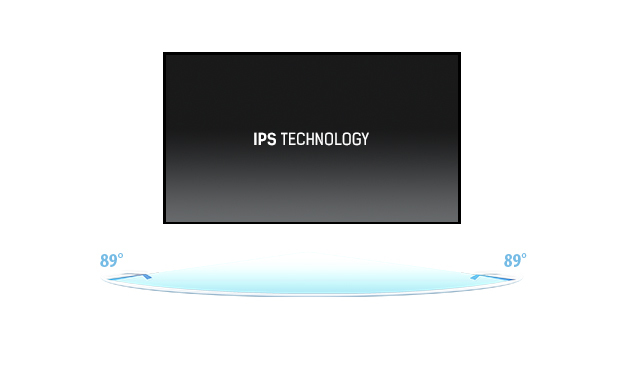

IPS Technology
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.

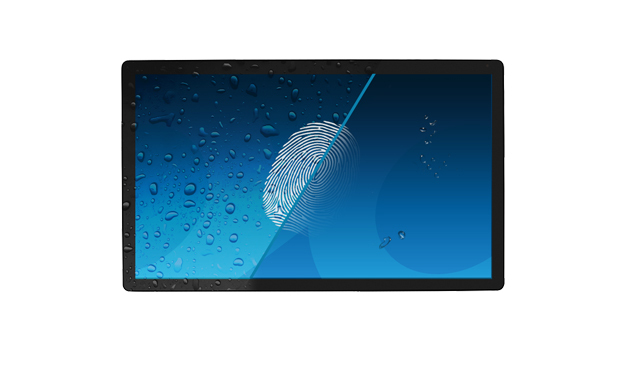

Anti-fingerprint coating
This special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen.
| Display | |
|---|---|
| Panel type | IPS |
| Display number of colours | 16.7 million colours |
| Number of simultaneous touchpoints | 10 |
| Touchscreen | Yes |
| Active display area (W x H) | 344.2 x 193.6 mm |
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 450 cd/m² |
| HD type | Double Full HD |
| Response time | 30 ms |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 170° |
| Pixel pitch | 0.17925 x 0.17925 mm |
| Native aspect ratio | 16:9 |
| Touchscreen technology | Projected capacitive system |
| Surface hardness | 6H |
| Multi-touch | Yes |
| Glass thickness | 1.8 mm |
| Ports & interfaces | |
| USB port | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Microphone in | Yes |
| Compatible memory cards | SD |
| Card reader integrated | Yes |
| Ethernet LAN | Yes |
| HDMI ports quantity | 1 |
| USB version | 2.0 |
| USB ports quantity | 3 |
| Audio | |
| Number of built-in speakers | 2 |
| RMS rated power | 4 W |
| Built-in speaker(s) | Yes |
| Design | |
| Product design | Interactive flat panel |
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Product colour | Black |
| Panel mounting interface | 100 x 100 mm |
| Certification | CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| VESA mounting | Yes |
| Fingerprint resistant | Yes |
| Performance | |
| Purpose | Commercial |
| Operating hours (hours/days) | 24/7 |
| On Screen Display (OSD) | Yes |
| Wi-Fi | Yes |
| Power | |
| Power consumption (off) | 0.3 W |
| Power consumption (typical) | 24 W |
| Power consumption (standby) | 0.5 W |
| Computer system | |
| Computer system | Yes |
| Processor cores | 4 |
| Processor family | ARM Rockchip |
| Processor model | RK3568 |
| Processor frequency | 2 GHz |
| Operating system installed | Android |
| Internal memory | 4 GB |
| Internal storage capacity | 32 GB |
| Processor manufacturer | Rockchip |
| Built-in processor | Yes |
| Processor architecture | ARM Cortex-A55 |
| Operating system version | 13 |
| Weight & dimensions | |
|---|---|
| Display width | 387 mm |
| Display depth | 30.5 mm |
| Display height | 244 mm |
| Display weight | 1.5 kg |
| Packaging data | |
| Package width | 477 mm |
| Package depth | 75 mm |
| Package height | 295 mm |
| Package volume | 2400 cm³ |
| Packaging content | |
| Power adapter included | Yes |
| Certificates | |
| Certification | CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| Technical details | |
| VESA mounting | Yes |
| Panel type | IPS |
| Number of simultaneous touchpoints | 10 |
| Thin Client | |
| Processor family | ARM Rockchip |
| Processor model | RK3568 |
| Processor frequency | 2 GHz |
| Operating system installed | Android |
| Internal memory | 4 GB |
| Internal storage capacity | 32 GB |
| Other features | |
| Panel type | IPS |
| Number of simultaneous touchpoints | 10 |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Microphone in | Yes |
| Compatible memory cards | SD |
| Card reader integrated | Yes |
| Bluetooth version | 5.2 |
| Bluetooth | Yes |
| Audio input | Mini Jack |
