iiyama Open Frame PCAP 10 point touch screen equipped with touch through glass function
SKU
TF1515MC-B2
£447.84
In stock
Only 10 left
Open Frame PCAP 10 point touch screen equipped with touch through glass function

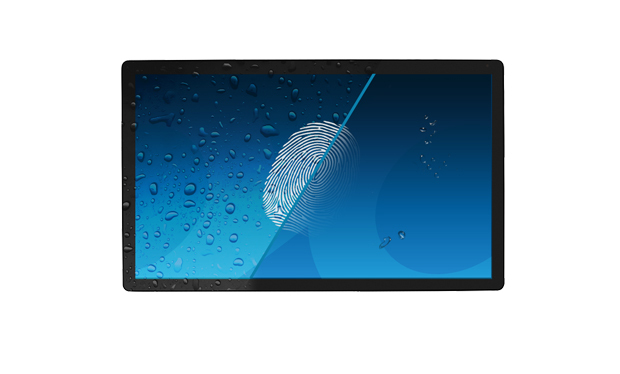

Touch Through-Glass
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.

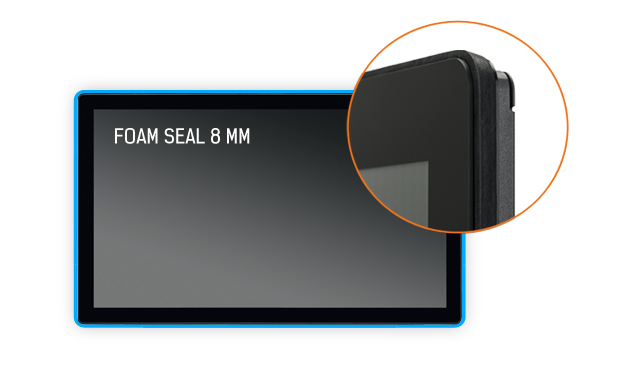

Foam Seal
A foam seal finish (8mm) around the monitor ensures seamless integration and optimal dust protection.
Touch technology - Capacitive
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
Anti-fingerprint coating
This special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen.

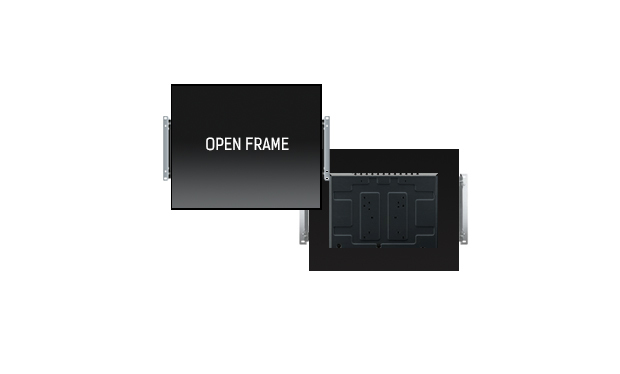

Open frame brackets
This open frame monitor can be equipped with optional external mounting brackets. It guarantees easy installation and makes it an ideal solution for kiosk integrators and In-store Retail.
The ProLite TF1515MC-B2 (15 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF1515MC-B2 can be equipped with optional external mounting brackets ( OMK2-1 ) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.
| Display | |
|---|---|
| Panel type | TN |
| Display number of colours | 16.2 million colours |
| Number of simultaneous touchpoints | 10 |
| Touchscreen | Yes |
| Display technology | LED |
| Display diagonal | 38.1 cm (15") |
| Display resolution | 1024 x 768 pixels |
| Display brightness | 350 cd/m² |
| HD type | XGA |
| Response time | 8 ms |
| Contrast ratio (typical) | 800:1 |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 150° |
| Pixel pitch | 0.297 x 0.297 mm |
| Display diagonal (metric) | 38 cm |
| Native aspect ratio | 4:3 |
| Horizontal scan range | 31.4 - 60 kHz |
| Maximum refresh rate | 75 Hz |
| Touchscreen technology | Projected capacitive system |
| Surface hardness | 7H |
| Glass thickness | 6 mm |
| Ports & interfaces | |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| Design | |
| Placement supported | Horizontal/Vertical |
| Product colour | Black |
| Panel mounting interface | 100 x 100 mm |
| Certification | CB, CE, TÜV-Bauart, EAC, cULus |
| VESA mounting | Yes |
| Screen shape | Flat |
| Wall mountable | Yes |
| Performance | |
| International Protection (IP) code | IP65 |
| On Screen Display (OSD) languages | Simplified Chinese, German, English, Spanish, French, Italian, Japanese |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 7 |
| HDCP | Yes |
| Plug and Play | Yes |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Power | |
| Power consumption (off) | 1.2 W |
| Power consumption (typical) | 16 W |
| Power consumption (standby) | 1.2 W |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 10 kWh |
| Computer system | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Weight & dimensions | |
| Width (with stand) | 364 mm |
| Height (with stand) | 291 mm |
| Depth (with stand) | 41.5 mm |
| Weight (with stand) | 2.9 kg |
| Packaging data | |
| Package width | 460 mm |
| Package depth | 460 mm |
| Package height | 470 mm |
| Package weight | 4.6 kg |
| Quick start guide | Yes |
| Cables included | AC, DisplayPort, HDMI, USB |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Cables included | AC, DisplayPort, HDMI, USB |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Certificates | |
| Certification | CB, CE, TÜV-Bauart, EAC, cULus |
| Technical details | |
| VESA mounting | Yes |
| Power supply type | External |
| Panel type | TN |
| Depth (without stand) | 291 mm |
| Number of simultaneous touchpoints | 10 |
| Weight (without stand) | 2.9 kg |
| Height (without stand) | 41.5 mm |
| Display viewable area (HxV) | 304.1 x 228.1 mm |
| Weight (with stand) | 2.9 kg |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
| Sustainability | |
| European Product Registry for Energy Labelling (EPREL) code | 378636 |
| Features | |
| Harmonized System (HS) code | 85285210 |
| Wall mountable | Yes |
| Other features | |
| Power supply type | External |
| Panel type | TN |
| Depth (without stand) | 291 mm |
| Number of simultaneous touchpoints | 10 |
| Weight (without stand) | 2.9 kg |
| Height (without stand) | 41.5 mm |
| Display viewable area (HxV) | 304.1 x 228.1 mm |
| Width (with stand) | 364 mm |
| Viewable size, vertical | 22.8 cm |
| Viewable size, horizontal | 30.4 cm |
| LED indicators | Yes |
| Height (with stand) | 291 mm |
| Display technology | LED |
| Depth (with stand) | 41.5 mm |
| Built-in microphone | No |
| Built-in camera | No |
| Quick start guide | Yes |
| Aspect ratio | 4:3 |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Plug and Play | Yes |
| Weight (with stand) | 2.9 kg |
| Maximum refresh rate | 75 Hz |
| Energy efficiency scale | A to G |
